The Multi Speed Vortex MSV-3500 is designed for soft or intensive mixing of reagents
Description
The Multi Speed Vortex MSV-3500 is designed for soft or intensive mixing of reagents in different size and type plastic tubes (0.2 to 50 ml).
It is designed for operation in life science laboratories working in the fields of biochemistry, cell and molecular biology.
Speed and time are under microprocessor control. LCD display indicates two lines of values: the set and actual values of speed and time.
The unit provides high maximum speed of platform rotation efficiently mixing microvolumes (less than 5 μl) of samples.

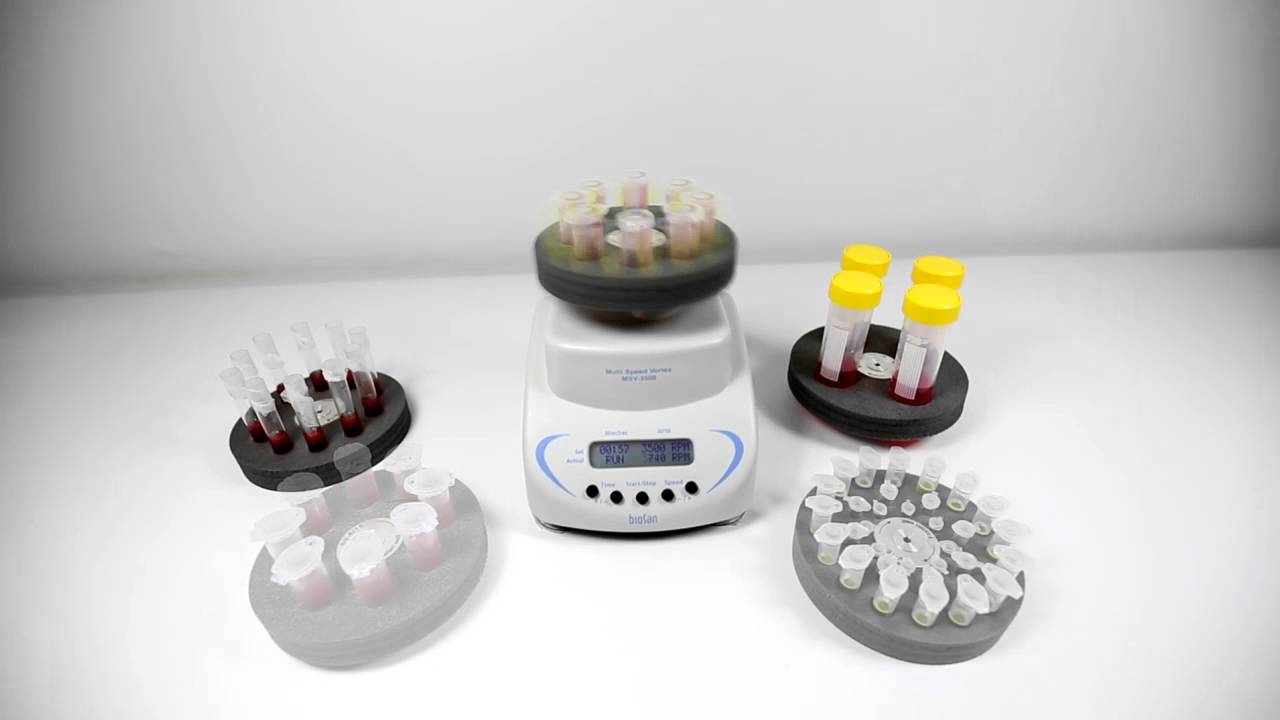

Included platforms:
SV-4/30 platform
4 sockets for 50 ml (Ø 30 mm) tubes.
- Diameter: 30 mm
- Tube volume: 50 mL
- Capacity: 4
SV-8/15 platform
8 sockets for 15 ml (Ø 16 mm) tubes.
- Diameter: 16 mm
- Tube volume: 15 mL
- Capacity: 8
SV-10/10 platform
10 sockets for 10 ml (Ø 12 mm) tubes.
- Diameter: 12 mm
- Tube volume: 10 mL
- Capacity: 10
SV-16/8 platform
16/8/8 sockets for 1.5/0.5/0.2 ml microtest tubes (Ø 11/8/6 mm).
- Diameter: 11/8/6 mm
- Tube volume: 1.5/0.5/0.2 mL
- Capacity: 16/8//8
Specifications
Speed control range |
300–3,500* rpm |
Digital time setting |
0–60 min / non-stop |
Time sound signal |
+ |
Maximum continuous operation time |
8 hrs |
Display |
LCD, 2 x 16 signs |
Orbit |
4 mm |
Overall dimensions (W×D×H) | Weight |
180 x 170 x 145 mm | 2.6 kg |
Power consumption |
12 W |
Warranty |
24 months |
