AmMag™ SA - semi-automated Magnetic Bead Purification System – Witec AG

Art No | L00768
request only
request only

Purify large number of protein or antibody samples in hours instead of days.

Description

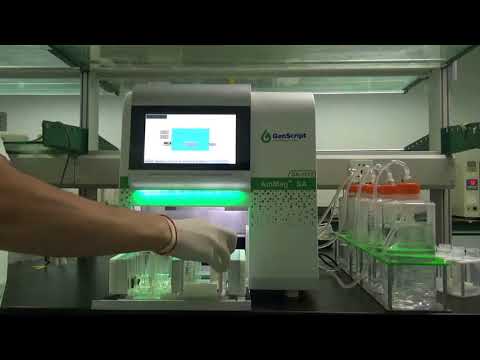

The AmMag™ SA automates the protein or antibody purification using magnetic beads. The instrument is capable of using 6-well deep well culture plates or 50 mL tubes. In combination with GenScript's antibody or recombinant protein binding magnetic beads the system offers high throughput with high capacity. For antibody purification, the newly released AmMag protein A magnetic beads allow cleaning of the beads with NaOH to increase the reusability.

For secreted proteins magnetic beads may be added to the cell culture so the binding can occur during the expression. Intracellular proteins can be bound once the cell lysis is accomplished. No centrifugation or filtration are necessary saving you hours of pre-processing time.

The AmMag™ protein A magnetic beads and racks make it easy to purify high number of samples in a short time. The high binding capacity base stable AmMag™ magnetic beads used in conjunction with the ergonomic AmMag™ magnetic racks allow the fast and efficient purification of proteins and antibodies directly from cell culture or lysate without the need for centrifugation or filtration.

Cuts your protein/antibody purification time from days to hours

  • Purify up to 12 samples at a time
  • Sample volumes from 5 ml to *50 ml
  • Up to 80 mg of protein or antibody per sample
  • Typical cycle time for 12 samples is less than 30 minutes

* Larger cell culture volumes can be used (up to 1-2 liters) if the magnetic beads are collected using magnetic rod and transferred to the 50 ml tubes/6-deep well plates.

Features and benefits:

  • Shorten the purification time
  • Save time and labor
  • Eliminate the need for centrifugation and filtration
  • Complete washing and elution process automatically
  • Closed environment to avoid endotoxin contamination

System capabilities:

  • Purify up to 12 samples at a time
  • Sample volumes from 5 mL to 50 mL
  • Isolate as much as 200 mg of protein or antibody per sample
  • Typical cycle time for 12 samples is less than 30 minutes
  • The instrument is programmable to accommodate different protocols

Supplier

Genscript
show all products

Specifications

Throughput

Up to 12 Samples/run

Beads volume (samples)

Up to 2 mL settled beads

Sample Volume

5 mL to 50 mL

Compatibility

15 mL tubes and 50 mL tubes

Size LxWxH (mm)

545 x 515 x 545

Weight

~ 50 kg

Power Parameters

110 ~ 240V VAC, 50/60 Hz
