Ensuring Clean Operations and Contamination Protection
Description
The Biosan UVC/T-AR is a benchtop UV-cleaner workstation designed to create a clean, contamination-free environment for PCR setup and other nucleic acid workflows.
This model features a dual UV decontamination system:
- An open 254 nm UV-C lamp disinfects surfaces and air, inactivating DNA/RNA contaminants, viruses, and bacteria within 15–30 minutes.

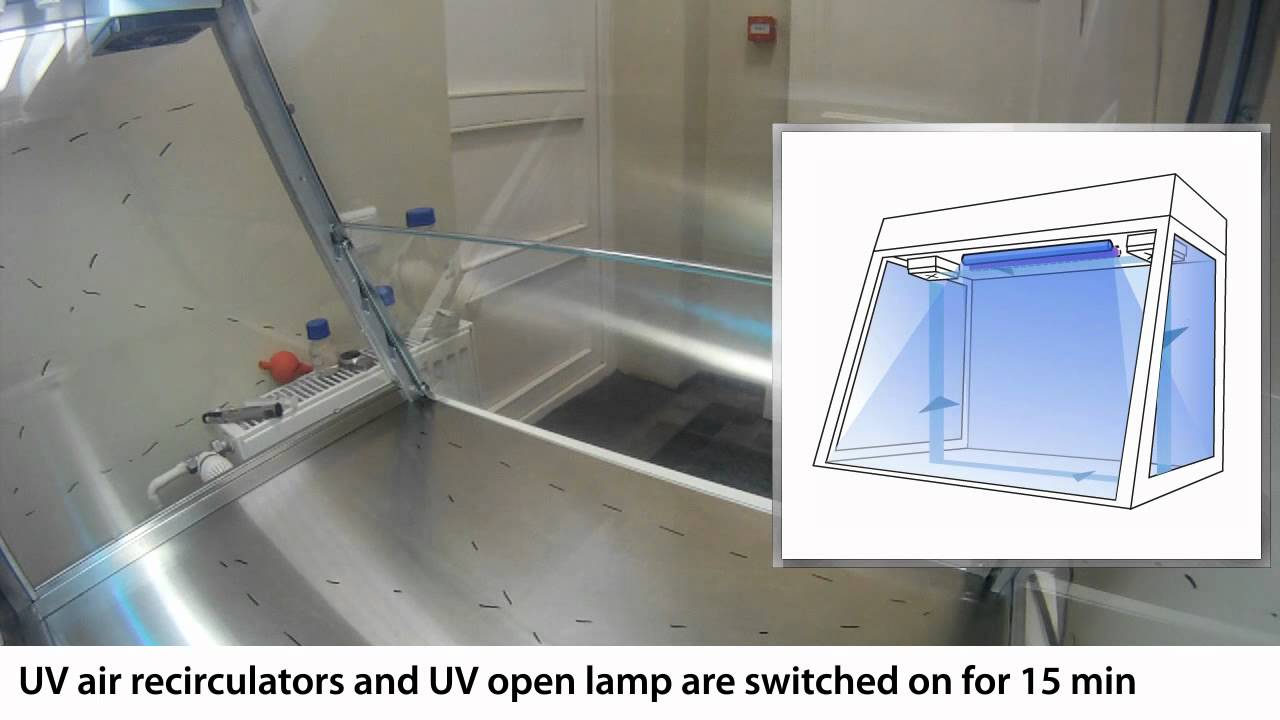

- A patented UV air recirculator continuously irradiates internal air, processing the entire cabinet volume approximately 100 times per hour. This ensures clean working conditions without exposing users to UV light.
The workstation also includes a touchscreen digital control panel for intuitive programming of UV exposure cycles and real-time monitoring of lamp life. An energy-efficient 8W LED daylight lamp provides bright workspace illumination while reducing energy consumption by around 50% compared to traditional fluorescent lighting. Transparent panels improve visibility inside the cabinet, enhancing user comfort.
Additional Highlights
- High-intensity, ozone-free UV sterilization: 25 W UV-C lamp (253.7 nm) with an approximate 9,000-hour lifespan.
- Patented UV air recirculator: Processes 20 m³/h for continuous internal decontamination.
- Reliable safety control: Automatic UV shut-off when the protective screen is opened, and UV-blocking panels provide over 99.9% UV protection for operator safety.
- Ergonomic, durable design: Features a metal frame and UV-resistant materials.
- Digital touchscreen interface: For timer control, lamp status, and maintenance alerts.
- Cable inlet: Allows for operating small lab equipment inside.
- Low noise, low energy consumption: Thanks to a quiet fan system and efficient operation.
- Compatibility: Can be used with mobile T-4 tables (with locking wheels and an integrated drawer) and Biosan LT-120, LT-150, LT-180 height-adjustable desks.
Specifications
| Digtal display & Lamp life timer |
yes |
| Display |
3.5″ – medical glove compatible |
| Walls material |
Plexiglas: Polymethyl methacrylate ALTUGLAS EX |
| Working surface material |
Steel with chemicals resistant powder coating |
| Open UV-lamp |
1 x 25W built‑in bactericidal UV-C, TUV 25W 1SL/25 |
| UV radiation level |
18 mW / cm2 / sec |
| Radiation type |
UV (λ = 253.7 nm), ozone-free |
| Digital time setting of direct UV exposure |
1 min–24 hrs / non–stop (increment 1 min) |
| UV-recirculator |
1x25W (efficiency >99% per 1 hour) |
| Daylight lamp (for working area illumination) |
1 x LED-8W |
| Thickness of side panels |
4 mm |
| Thickness of upper front panel |
8 mm |
| Thickness of screen |
8 mm |
| Optical transmission |
92% |
| UV protection |
>99.90% Polymethyl methacrylate ALTUGLAS EX |
| Working area |
645 × 490 mm |
| Opening dimensions (fully raised protective screen) |
645 × 165 mm |
| Safety features |
Automatic open UV-lamp switch off when screen is open |
| Power outlets inside the unit |
Inlet for power cords (Swiss socket/plug) |
| Overall dimensions (W×D×H) | Weight net/gross |
720 × 535 × 555 mm | 21.4 / 30 kg |
| Power consumption |
64W |
| Optional table |
T-4 (80 × 60 × 77cm) |
