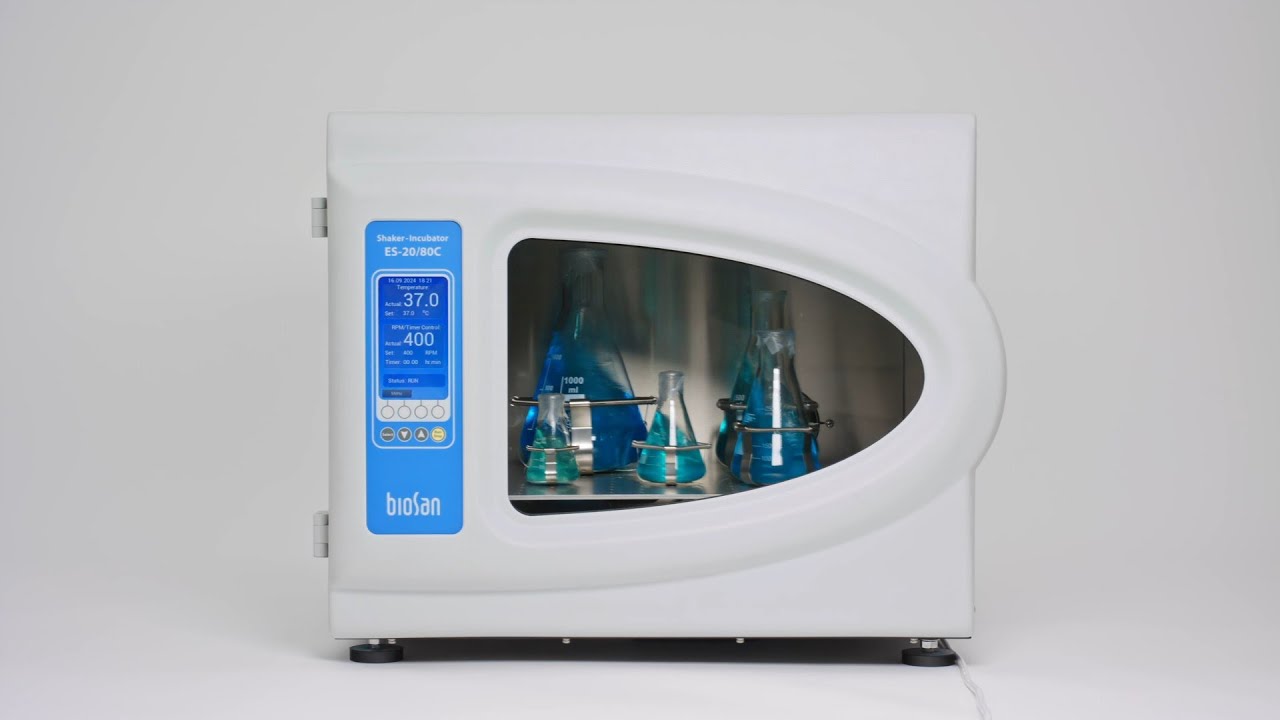

ES-20/80 Orbital Shaker-Incubator

Art No | BS-010167-A05

ES-20/80 Orbital Shaker-Incubator

7'070.00 CHF

Brochure

This professional device is equipped with a newly developed triple eccentric mechanism for platform motion that provides supreme balancing characteristics, superior reliability and quiet operation.

Description

The ES-20/80 shaker-incubator for biotechnological and pharmaceutical laboratories is a professional device and the typical applications include:

microbial and cell culture cultivation
protein expression
solubility studies
general mixing
and other various applications in the fields of biology and chemistry

Temperature setting range from +25°C - 80°C
Speed control range: 50 - 400 rpm
Max. load 10.6 kg

The unit is equipped with a newly developed triple eccentric mechanism for platform motion that provides supreme balancing characteristics, superior reliability and quiet operation. The achieved stability of the unit during vigorous mixing allows for stacking installation of up to 3 units which enables to save space. The new display and easy to use user interface provide a clear and intuitive control of parameters and also allow data logging, storage and display over time. Additional features like out of balance sensor and automatic thermostat failure detection make this shaker-incubator an advanced and safe product. Bluetooth connectivity to PC allows for data management, data logging, parameter control and profiling in the included software.

A built-in heat-resistant brushless fan provides precise temperature distribution inside the chamber (from 5 °C above ambient up to +80 °C). Additionally, excellent sample temperature uniformity of ±0.3 °C at 37 °C is achieved. The inner chamber is made of stainless steel. State-of-the-art motor, thermal insulation materials and parameter PID control decrease the energy consumption and make the shaker-incubator highly energy efficient despite its relatively large size.

No platform included.

Supplier

Biosan
show all products

Specifications

Temperature setting range	+25°C… +80°C
Temperature control range	5°C above ambient… +80°C
Speed control range	50–400 rpm (increment 10 rpm)
Temperature setting resolution	0.1°C
Temperature stability	±0.1°C
Temperature accuracy at +37°C	±0.1°C
Temperature uniformity at +37°C	±0.3°C
Orbit	20 mm
Display	TFT – 5 inches
Digital time setting	1 min–96 hrs / non–stop (1 min increment)
Timer sound signal	+
Maximum load	10.6 kg
PC system requirements	Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/8.1/10/11, USB, Bluetooth
Dimensions of the inner chamber	460 × 350 × 400 mm
Overall dimensions (W×D×H) \| Weight	620 × 530 × 510 mm \| 48 kg
Power consumption	500 W
